Description

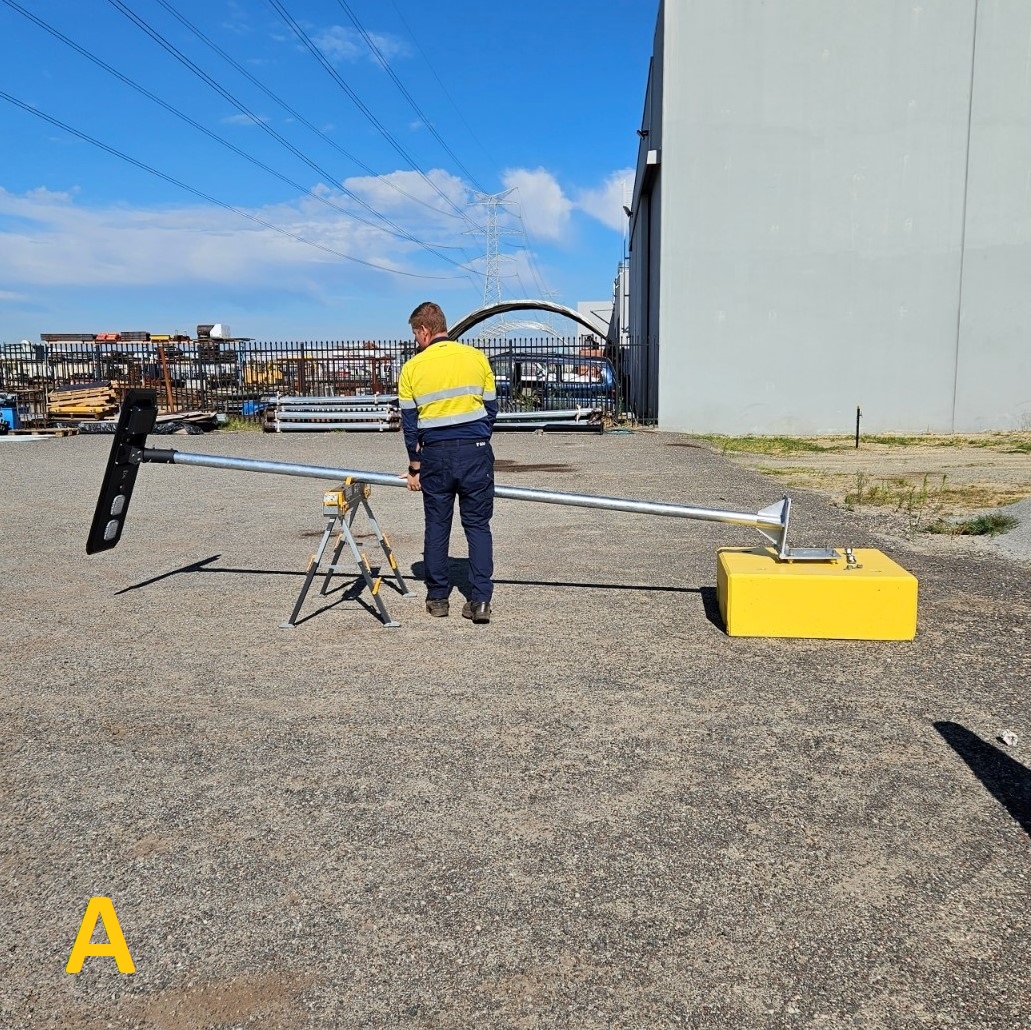

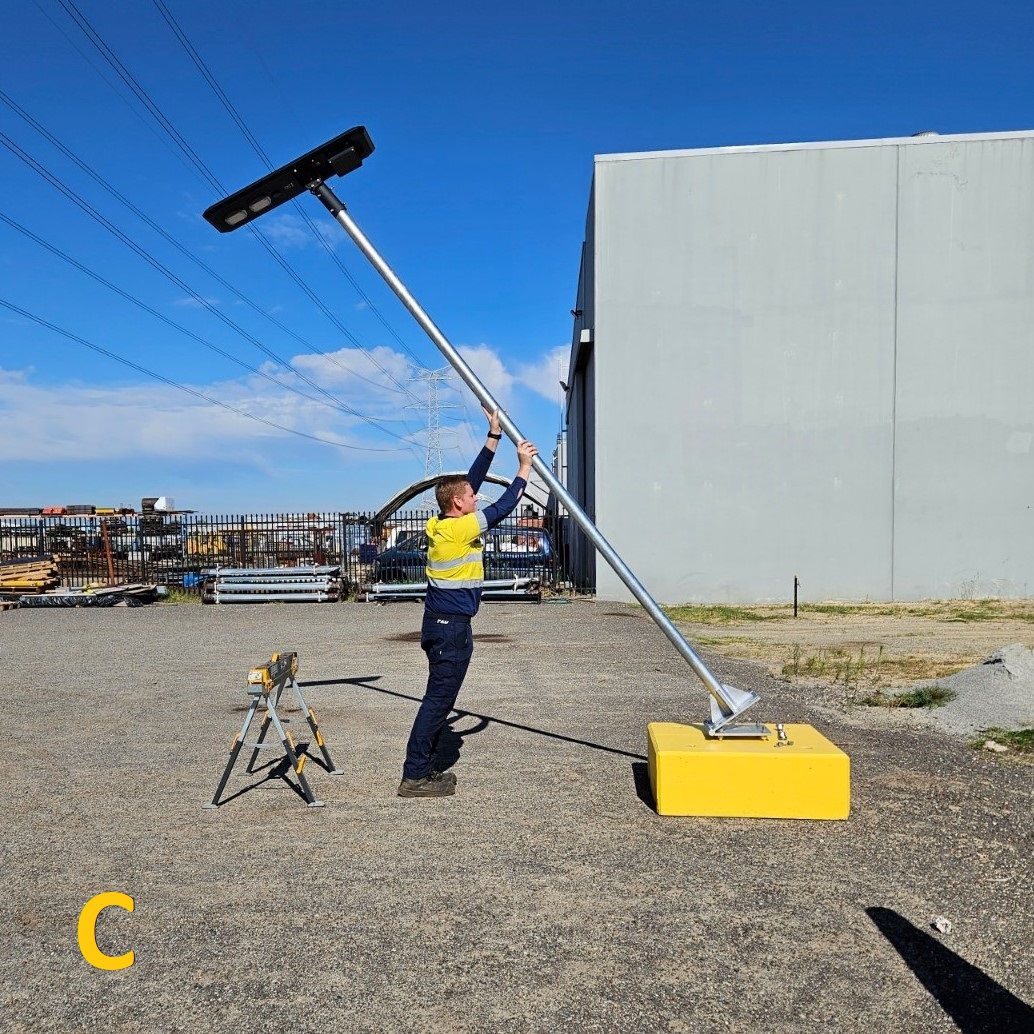

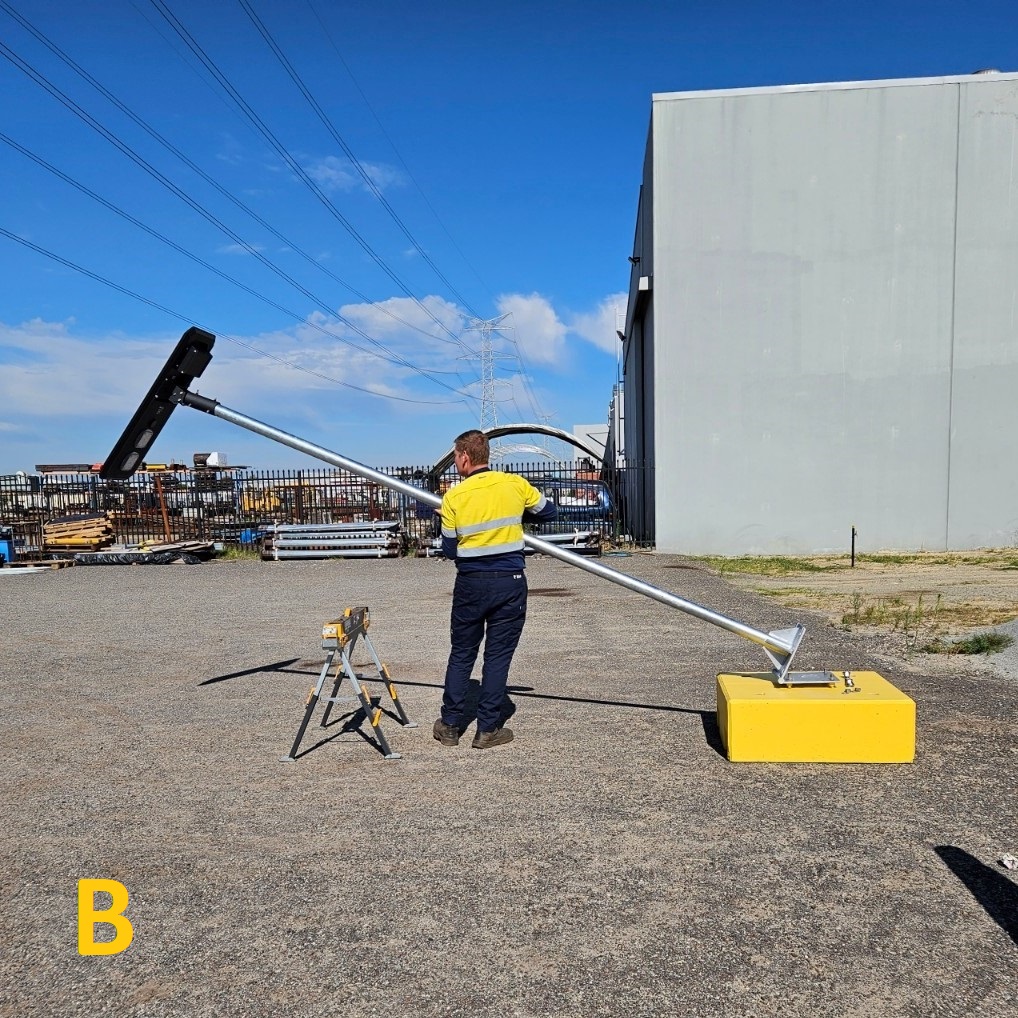

EcoCivil Solar Lighting Towers, Mini – Tilting Pole
| Details | EcoCivil Mini 60 | EcoCivil Mini 40 | EcoCivil Mini 20 |
|---|---|---|---|
| Light | |||
| LED Power | 60 Watts (30W Constant) | 40 Watts (20W Constant) | 20 Watts (10W Constant) |
| Efficiency | 150 Lumens/Watts | 150 Lumens/Watts | 150 Lumens/Watts |
| LED Lifetime | Over 50000 Hours Lm80 | Over 50000 Hours Lm80 | Over 50000 Hours Lm80 |
| Battery | |||
| Type | Lithium Iron Phosphate LifePO4-26650 | Lithium Iron Phosphate LifePO4-26650 | Lithium Iron Phosphate LifePO4-26650 |
| Capacity | 42 Ah 12.8 Volts | 24 Ah 12.8 Volts | 18 Ah 12.8 Volts |
| Autonomy | Over 24 Hours At Full Charge | Over 24 Hours At Full Charge | Over 24 Hours At Full Charge |
| Charging time | 6-7 HOURS | 6-7 HOURS | 6-7 HOURS |
| Lifespan | Over 4000 Cycles @ 80% Dod Over 10 Years Lifetime | Over 4000 Cycles @ 80% Dod Over 10 Years Lifetime | Over 4000 Cycles @ 80% Dod Over 10 Years Lifetime |
| Working Temp. | -10°C TO 70 °C | -10°C TO 70 °C | -10°C TO 70 °C |
| Solar panel | |||
| Power | 105 Watts /18v | 72 Watts /18v | 60 Watts /18v |
| Cell type | Monocrystaline Panel Grade a 25 Years | Monocrystaline Panel Grade a 25 Years | Monocrystaline Panel Grade a 25 Years |
| Size | 1571mm x 398mm x 43mm | 1103mm x 398mm x 43mm | 910mm x 398mm x 43mm |
| Concrete Block | |||
| Size | 770mm x 770mm x 500mm | 770mm x 770mm x 500mm | 770mm x 770mm x 500mm |
| Weight | 650kg | 650kg | 650kg |
| Mast | |||
| Folded | 650mm | 650mm | 650mm |
| Extended | 4500mm | 4500mm | 4500mm |
