Why Choosing the Right Commercial Batten Light Matters
Commercial batten lights are the backbone of effective lighting in public spaces, car parks, and commercial buildings. Getting the right specification can mean the difference between decades of reliable service and costly maintenance headaches.
Key factors when comparing commercial batten lights:
- IP rating - IP66 for weatherproof outdoor use, IP20 for indoor applications
- Impact resistance - IK10 rating for vandal-resistant public areas
- Energy efficiency - Look for 120 lm/W or higher for maximum savings
- Lifespan - Quality LED battens deliver 50,000+ hours of operation
- Size options - Common lengths from 600mm to 1800mm (2ft to 6ft)
- Operating temperature - Models rated for -10°C to 50°C handle Australian conditions
For local councils, facility managers, and contractors, the right commercial batten light delivers significant energy savings while reducing maintenance costs. LED batten lights can cut energy consumption by 50-80% compared to traditional fluorescent fittings.
Poor lighting choices create real problems: higher electricity bills, frequent lamp replacements, safety concerns in public areas, and potential non-compliance with Australian standards. Quality commercial-grade batten lights solve these issues through robust construction, efficient LED technology, and protection ratings suited to harsh Australian environments.
What Are Commercial Batten Lights?
Commercial batten lights are the modern answer to outdated fluorescent tube systems that have dominated Australian workplaces for decades. These linear LED fixtures house everything you need for quality lighting in one sleek, sealed unit - no more fumbling with separate tubes, ballasts, and starters.
These fixtures integrate LED diodes directly into robust aluminium housing, meaning fewer failure points, easier installation, and lighting that actually works when you flip the switch. Modern commercial batten lights achieve up to 120 lumens per watt - delivering 30-40% more light for the same electricity bill compared to fluorescent alternatives.
Why choose commercial batten lights over tubes?
Instant illumination means full brightness immediately - no waiting around in dim corridors or car parks while fluorescent tubes slowly flicker to life. This instant-on capability is crucial for safety in public spaces and emergency situations.
The 50,000-hour lifespan of quality LED battens means over five years of continuous operation before needing replacement. Compare this to fluorescent tubes that typically burn out after 8,000-10,000 hours, and the maintenance savings become substantial.
Superior efficiency at 120 lm/W makes these fixtures approximately 90% more efficient than old incandescent systems and 30-40% better than fluorescent. LED battens are completely mercury-free - no hazardous waste disposal requirements or environmental concerns.
Core parts of a commercial batten light
The LED driver converts your building's AC mains power to the precise low-voltage DC that LEDs require. Quality drivers include power factor correction and thermal protection.
The LED chips are typically 2835 SMD LEDs arranged along the fixture's length. Higher-quality chips maintain consistent colour and brightness output throughout the fixture's lifetime.
A well-designed diffuser spreads light evenly while reducing glare. The aluminium housing provides optimal heat dissipation and structural strength, while critical IP gaskets protect internal components from moisture and dust ingress.
For compliance-critical applications, an optional emergency pack provides 180 minutes of battery backup illumination essential for meeting Australian standards in escape routes.
Key Comparison Factors Before You Buy
Getting the right commercial batten lights isn't just about finding the cheapest option - it's about understanding which specifications will deliver the best performance for your specific application.
Durability should be your first consideration. Quality fixtures are rated for at least 50,000 hours with L70 lumen maintenance, meaning they'll still produce 70% of their original brightness after five years of continuous use.
The protection ratings need to match your environment perfectly. An IP20 fixture works in climate-controlled offices, but will fail quickly in car parks where moisture and dust are constant challenges. Similarly, an IK10 impact rating prevents vandalism repairs in public spaces.
Light output and efficiency work together to determine ongoing electricity costs. A fixture producing 120 lumens per watt will use significantly less energy than one producing 100 lm/W for the same brightness.
Australian conditions demand fixtures that can handle extreme temperature variations. Look for operating temperature ranges from at least -10°C to 50°C to ensure reliable performance.
Protection ratings for commercial batten lights
IP20 ratings provide basic protection suitable for indoor applications like offices and retail spaces - they protect against solid objects larger than 12mm but offer no water protection.
IP65 weatherproofing provides complete dust protection plus resistance to water jets from any direction. This rating is essential for car parks, walkways, and semi-outdoor areas.
IP66 ratings provide ultimate protection against both dust and powerful water jets. Choose this level for coastal installations or areas requiring regular high-pressure cleaning.
IK08 standard protection handles 5-joule impacts, suitable for most commercial applications. IK10 vandal-resistant fixtures withstand 20-joule impacts - essential for public areas, schools, and transport hubs.
Output, efficiency & light quality
Lumen output determines brightness, but more isn't always better. The key is matching output to your specific space requirements rather than simply choosing the highest numbers.
Luminous efficacy measured in lumens per watt directly impacts electricity bills. A fixture achieving 120 lm/W uses 20% less energy than one producing 100 lm/W for identical light output.
Colour temperature selection affects functionality and comfort. 3000K warm white creates comfortable ambience, 4000K neutral white provides optimal balance for most commercial applications, while 5000K to 6500K daylight temperatures improve alertness in industrial settings.
Colour Rendering Index above 80 ensures colours appear natural - particularly important in retail environments and industrial settings where colour coding provides safety information.
Smart, emergency & sensor options
Tri-colour switching allows adjustment between 3000K, 4000K, and 6500K colour temperatures using simple DIP switches. DALI compatibility enables precise dimming control and integration with building management systems.
Motion sensors can reduce energy consumption by up to 80% in areas with intermittent occupancy. Emergency backup with 180-minute battery runtime ensures compliance with Australian standards for escape route lighting.
Types of Commercial Batten Lights & Best Uses
Choosing the right commercial batten lights depends on understanding which features match your specific environment and requirements.
Standard commercial batten lights for offices & retail
For controlled indoor environments, standard commercial batten lights focus on creating comfortable, productive spaces while maximising energy efficiency.
Slim profiles at just 60-80mm deep blend seamlessly into modern ceiling designs. Surface mounting keeps installation simple and maintenance accessible, while 4ft lengths (1200mm) provide excellent coverage for standard ceiling grids.
These fixtures excel where you need high-quality light without worrying about weather or vandalism. Focus on achieving 120 lm/W efficiency, CRI above 80, and colour temperatures between 4000K-5000K for optimal visual comfort.

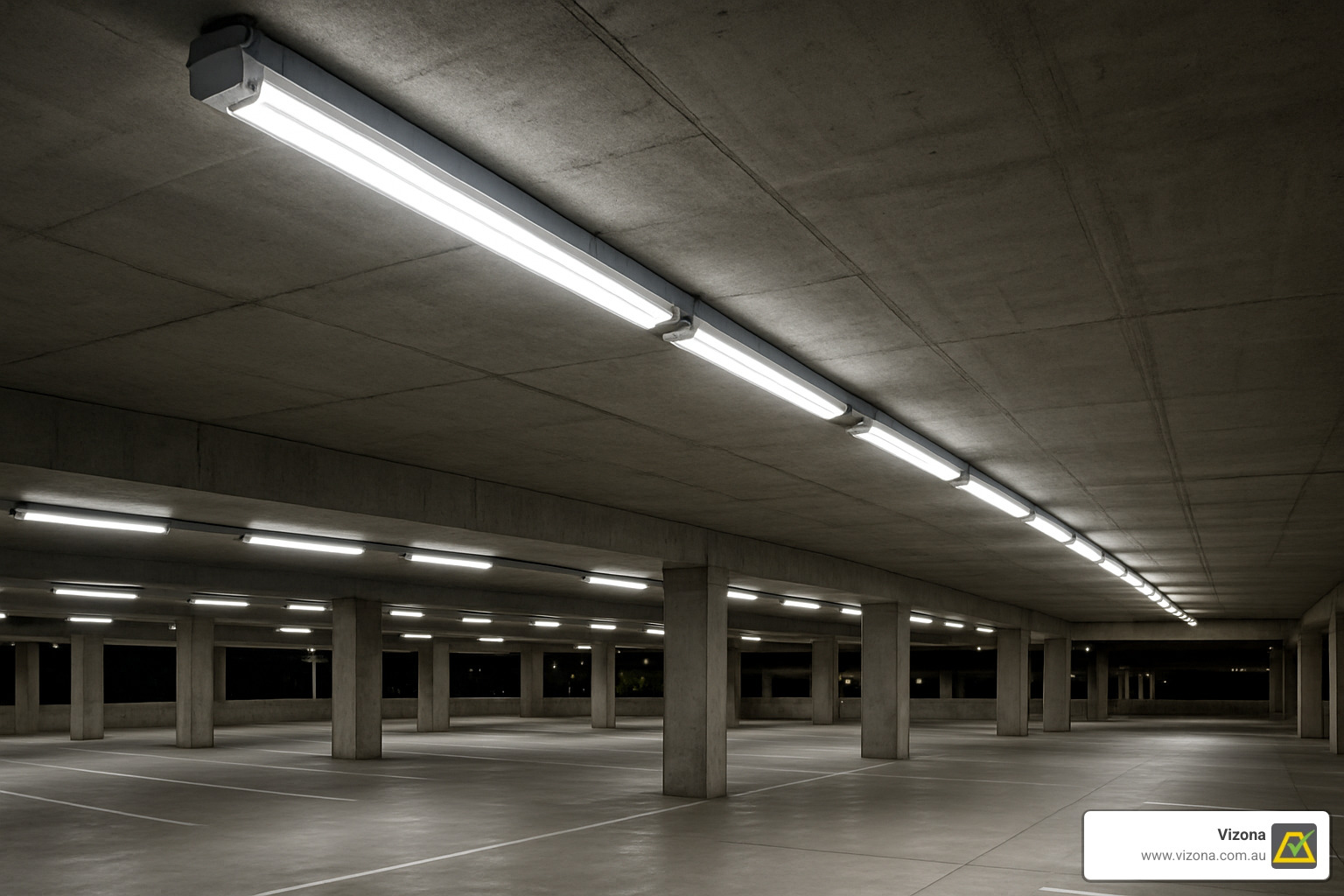

Weatherproof/Tri-proof commercial batten lights for car parks
Australian car parks demand practically indestructible lighting that handles scorching heat, winter rain, and occasional impacts.
IP66 rating provides complete protection against dust and powerful water jets from any direction. IK10 impact resistance protects against both accidental damage and deliberate vandalism - these fixtures can withstand a 5kg mass dropped from 40cm.
Anti-corrosion treatment becomes critical in coastal areas, while wide operating temperature range from -10°C to 50°C ensures reliable operation through Australia's extreme seasonal variations.
Emergency commercial batten lights for corridors
Building codes require emergency lighting for escape routes. Integrated battery packs provide 180 minutes of emergency illumination, exceeding most Australian standard requirements.
Automatic testing functions verify battery condition monthly, with comprehensive annual tests that document performance for building inspectors. AS/NZS compliant emergency operation meets Australian standards for exit and escape route lighting.
Sensor-ready commercial batten lights for warehouses
Large warehouses with inconsistent occupancy patterns benefit from sensor-equipped commercial batten lights that dramatically reduce energy consumption.
Microwave PIR sensors outperform standard PIR sensors in dusty environments, with detection ranges up to 8 metres radius. Daylight harvesting automatically adjusts output based on available natural light, reducing energy consumption by 30-50% during daylight hours.
Energy savings of 80% are achievable in intermittently occupied areas, with sensor-equipped fixtures typically paying back their investment within 18-24 months.
Product Round-Up & Application Matrix
The best commercial batten lights aren't always the most expensive ones - they're the ones that match your specific needs perfectly. That's why we developed the Axo (Tri-Proof) – TBL Batten Light with Australian conditions firmly in mind.
The Axo TBL comes in two practical sizes. The 600mm/30W model delivers 3,600 lumens - perfect for corridors and smaller spaces. The 1200mm/60W model steps up to 7,200 lumens, ideal for car parks and large commercial areas.
What sets this fixture apart is its combination of IP66 weatherproof rating and IK10 impact resistance - complete protection from dust and water jets, plus maximum protection against vandalism and accidental damage.
The 120 lm/W efficiency translates into real electricity bill savings, while the 50,000-hour lifespan means over five years of continuous operation with minimal maintenance. The -10°C to 50°C operating range handles everything from chilly winters to scorching summers.
Comparing leading commercial batten lights
Standard indoor fixtures typically offer 600-1800mm lengths with 18-60W power consumption and 100-120 lm/W efficacy. They're perfect for offices and retail spaces with IP20 rating and IK08 impact resistance.
Weatherproof fixtures step up protection with IP65-IP66 ratings and often IK10 impact resistance, consuming 30-75W while maintaining 100-115 lm/W efficacy. Emergency fixtures focus on compliance with battery backup systems, while sensor-equipped models offer full sensor suites with 110-120 lm/W efficacy.
The Axo TBL sits at the premium end with 120 lm/W efficacy, IP66/IK10 protection, and 5-year warranty - designed for multi-purpose applications where you need efficiency, durability, and reliability.
Spotlight on the Axo (Tri-Proof) – TBL Batten Light
The Axo TBL represents our commitment to creating commercial batten lights that don't compromise. The recyclable aluminium housing supports circular economy principles while providing superior thermal management compared to pressed steel alternatives.
We've optimised this fixture specifically for Australian conditions. Marine-grade aluminium resists corrosion in coastal and industrial environments, UV-stable materials maintain performance under intense sun, while dust-tight sealing prevents accumulation common in arid conditions.
Die-cast aluminium housing provides superior strength and thermal conductivity. Silicone gasket sealing maintains IP66 protection throughout the fixture's operational life, while the polycarbonate diffuser resists impact and UV degradation.
Quality LED drivers ensure flicker-free operation and extend LED lifespan. The 50,000-hour LED lifespan reduces replacement frequency and waste generation, while mercury-free operation eliminates hazardous waste disposal requirements.
Installation & Maintenance Best Practice
Getting your commercial batten lights installed properly makes the difference between decades of trouble-free service and ongoing headaches.
Surface mounting remains the go-to method for most applications. Quality fixtures come with multiple mounting points that distribute load evenly across the ceiling structure. Always match your fixings to the substrate - masonry anchors for concrete, toggle bolts for plasterboard, and structural screws for steel framework.
Suspension kits work when ceiling access is limited. Ensure suspension cables can handle fixture weight plus a safety margin, and check ceiling attachment points are structurally sound.
Conduit entries need special attention to maintain protection ratings. Use IP-rated cable glands that match or exceed your fixture's rating. For continuous runs, loop-in loop-out wiring simplifies installation while following AS/NZS 3000 wiring requirements.
Cleaning polycarbonate diffusers with mild detergent and water maintains both light output and appearance. Avoid abrasive cleaners that can scratch surfaces. Thermal management is critical for LED longevity - these fixtures need adequate ventilation, so avoid confined spaces where heat builds up.
According to scientific research on LED energy savings, properly installed LED fixtures achieve their full 50,000-hour lifespan while maintaining consistent light output. This maintenance-free operation over five-plus years is one of the biggest advantages over fluorescent alternatives.
Safety & compliance for commercial batten lights
AS/NZS 1158 compliance isn't optional for public lighting installations. This standard specifies minimum illumination levels, uniformity ratios, and installation practices that keep public spaces safe.
Flicker-free drivers maintain steady output without the annoying 100Hz flicker from fluorescent systems. Blue light management through appropriate colour temperatures (4000K or lower) supports wellbeing in spaces where people spend extended time.
Earthing requirements for metal-housed fixtures must comply with AS/NZS 3000 standards. All exposed metalwork needs proper earthing to prevent electric shock hazards.
Frequently Asked Questions about Commercial Batten Lights
How do IP and IK ratings affect product choice?
Think of IP and IK ratings as your fixture's survival guide. IP ratings tell you exactly what environmental conditions your batten can handle. An IP20 fixture belongs in clean, dry indoor spaces like offices. An IP66 batten handles driving rain, dust storms, and high-pressure cleaning - perfect for car parks and outdoor areas.
IK ratings measure impact resistance. IK08 rating handles most accidental bumps and normal commercial use. IK10 protection withstands a 5kg weight dropped from 40cm - essential where vandalism is possible.
The trick is matching ratings to actual conditions, not over-engineering. Choose the protection you need, not the maximum available.
Can I retrofit commercial batten lights onto existing wiring?
Absolutely - it's one of the biggest advantages of modern LED battens. Most commercial batten lights are designed as direct fluorescent replacements, using existing mounting points and cable runs.
The key step is removing the old ballast from fluorescent fittings. A qualified electrician will bypass the ballast circuit and connect the LED batten directly to mains power. Existing mounting holes usually line up perfectly, and you can often reuse the same cable entry points.
This process transforms energy-hungry fluorescent installations into efficient LED systems without major electrical work. Remember - mains voltage work requires qualified electricians and compliance with AS/NZS 3000 wiring standards.
What smart controls work best with commercial batten lights?
Smart controls can slash energy bills by 30-80%, but choosing the right system depends on your specific needs.
DALI (Digital Addressable Lighting Interface) represents the premium option for large installations. Every fixture gets its own digital address, enabling individual control, precise dimming, and integration with building management systems.
0-10V dimming provides reliable dimming control at lower cost. Multiple fixtures can share the same dimming circuit, perfect for warehouses or retail spaces needing basic zone control.
Motion sensors deliver the biggest energy savings in intermittently occupied areas. Microwave sensors outperform standard PIR sensors in dusty warehouses, while daylight harvesting sensors automatically adjust output based on available natural light.
The sweet spot for most commercial applications combines motion detection with daylight harvesting, reducing energy consumption by 50-80% while maintaining appropriate light levels.
Conclusion
Making the right choice with commercial batten lights isn't about finding the cheapest option - it's about understanding what your space needs and finding fixtures that deliver long-term value.
Cost savings add up quickly when you choose efficient, durable fixtures. A quality LED batten operating at 120 lm/W can cut energy bills by 50-80% compared to old fluorescent systems. Over a 50,000-hour lifespan, that's serious money back in your budget.
Durability matters in Australian conditions. Our harsh climate can destroy poorly specified fixtures within months. That's why we engineer products like our Axo (Tri-Proof) – TBL Batten Light to handle everything from -10°C winter mornings to 50°C summer heat, with IP66 weatherproofing and IK10 impact resistance.
Getting the specification right saves headaches. We've seen projects where someone chose IP20 fixtures for a car park or skipped impact resistance in public areas. Under-specifying creates maintenance nightmares and safety risks that cost far more than doing it right initially.
Correct specification matching means understanding your environment and choosing fixtures that will survive and perform. An office needs different protection than a car park, and a warehouse has different requirements than a public walkway. Match protection ratings to actual conditions, prioritise efficiency for long-term savings, and ensure compliance with Australian standards.
At Vizona, we've built our reputation on helping people make these decisions correctly. Our team understands local conditions, compliance requirements, and real-world performance differences between lighting options. We're not just selling fixtures - we're helping you avoid costly mistakes and choose solutions that deliver reliable performance year after year.
Ready to upgrade your lighting? Whether you're dealing with a car park needing weatherproof reliability, a warehouse requiring high-output efficiency, or a public space demanding vandal-resistant durability, we have the experience and products to match your specific needs. Our Axo TBL range represents everything we've learned about what works in Australian conditions - sustainable materials, proven performance, and protection ratings that actually protect.
More info about car park lighting solutions and our complete range of commercial lighting products.
Contact Vizona today for expert guidance on selecting and specifying commercial batten lights that deliver long-term value and performance in Australian conditions. We're here to help you get it right the first time.
