Why High Mast Lighting Transforms Large-Scale Commercial Spaces
High mast lighting systems provide efficient illumination for large areas using tall poles typically ranging from 12 to 50 metres in height. These systems are essential for commercial and industrial applications where traditional lighting falls short.
Key Features of High Mast Lighting:
- Pole Heights: 12-50 metres (40-150 feet) for maximum coverage
- Luminaire Clusters: 4-16 LED fixtures mounted at the top of each pole
- Coverage Area: Can illuminate areas up to 450 square metres per pole
- Energy Efficiency: Modern LED systems use 50-80% less energy than traditional HID lighting
- Maintenance Access: Integrated lowering mechanisms for safe, ground-level servicing
- Applications: Highways, ports, airports, industrial facilities, large parking areas, sports stadiums
The technology has evolved significantly from older high-pressure sodium and metal halide systems. Today's LED high mast lighting delivers superior performance with dramatically reduced operating costs.
For example, a single 750W LED high mast fixture can replace multiple 1000W-2000W HID lamps while providing better light distribution and lasting over 100,000 hours. This translates to potential savings of up to $8,000 per fixture annually in electricity costs alone.
I'm Gavin Cook, Managing Director of Vizona, and I've been designing and delivering high mast lighting solutions across Australia since 2018, with our team's collective experience in lighting infrastructure dating back to 1999. We've supplied everything from 365 poles for the Snowy Hydro 2.0 project to custom high mast solutions for major airports and defence facilities.
The Anatomy of a High Mast System
Understanding how a high mast lighting system works doesn't have to be complicated. Think of it like a giant lamp post with three main parts: the pole that holds everything up, the lights at the top, and a clever system that brings those lights down for maintenance.
Let me walk you through each component so you can make informed decisions about your project.
The Pole and Foundation
Building the Foundation
Every high mast system starts underground. The foundation needs to handle serious forces - we're talking about 50-metre poles dealing with cyclone winds and heavy lighting equipment.
Foundation Components:
- Drilled shafts that go deep into the ground
- Typically 54 to 66 inches in diameter
- Anchor bolts create rock-solid connections
- Engineered for specific soil conditions and local wind loads
The Pole Structure
The pole itself is made from heavy-duty steel with a hot-dip galvanised coating. This isn't just any coating - it's your insurance policy against corrosion, especially important in Australia's harsh conditions.
Height Guidelines by Application:
- Large car parks: 12-20 metre poles
- Highways and major transport: 20-40 metre poles
- Ports, airports, industrial complexes: 30-50 metre poles
Every pole is engineered to Australian Standards (AS/NZS) because structural integrity isn't negotiable when you're dealing with this scale.
The Luminaire Assembly (The Lights)
LED Technology That Delivers
At the top of each pole sits the real star of the show - the LED luminaires. These aren't your average light bulbs.
LED Performance Specs:
- High-performance LED modules deliver up to 139,000 lumens per fixture
- Efficiency of 191 lumens per watt
- Far superior to older technologies
- Brilliant illumination while using dramatically less electricity
Headframes and Brackets

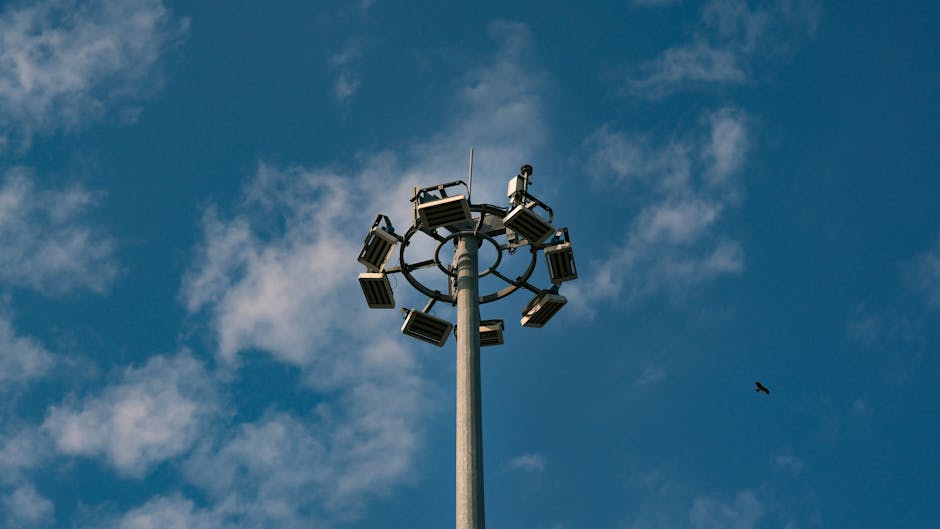

The headframes and brackets are what hold everything together up there.
Key Features:
- Made from hot-dip galvanised steel
- Support 4 to 16 fixtures per pole
- Available in straight, curved, or custom arrangements
- Configured to get light exactly where you need it
Getting the Light Distribution Right
Different areas need different lighting patterns.
Optical Distribution Types:
- Asymmetric optics: Perfect for roadways and linear areas
- Symmetric optics: Ideal for open areas and car parks
- Type I-V optical distributions: Match specific applications
More info about our street & area lighting solutions
The Lowering Mechanism
Maintenance Made Simple
Here's where modern high mast lighting really shines. Remember the old days when you needed expensive bucket trucks or cranes every time a light needed attention? Those days are over.
Maintenance System Options:
- Winch systems: Bring entire luminaire assembly down to ground level safely
- Base-hinged masts: Allow whole pole to hinge at base for easy access
- Fixed systems: Designed with maintenance in mind (require specialised equipment)
The Real Benefits
This isn't just about convenience - it's about safety, cost, and efficiency.
Maintenance Advantages:
- No traffic disruption while crews work overhead
- No expensive equipment rentals
- No safety risks from working at height
- Safer procedures at ground level
- Lower ongoing costs
- Reduced traffic disruption for roadway lighting
The Clear Winner: Comparing LED and Traditional HID Technology
The lighting industry has witnessed a revolution over the past decade. When you compare modern LED technology to older HID systems (High-Pressure Sodium and Metal Halide), the difference is night and day—literally.
If you're still running traditional high mast lighting with HID lamps, you're essentially burning money. Let me show you why LED technology has become the clear winner for Australian conditions.
Energy Efficiency and Cost Savings
The numbers tell an incredible story. Traditional HID fixtures consume between 1000W and 2000W per fixture, while modern LED equivalents use just 209W to 750W. That's a massive 50-80% reduction in energy consumption.
Here's where it gets interesting for your bottom line. A single 1000W HPS fixture can cost up to $6,300 per year in electricity alone. Scale that up to a 2000W fixture, and you're looking at $12,500 annually per light.
LED systems deliver the same illumination levels while potentially saving you over $8,000 per fixture each year. When you multiply that across an entire high mast installation, the savings become substantial.
Most LED high mast lighting systems pay for themselves within 2-4 years through energy savings alone. After that, you're enjoying pure profit on your investment. Plus, government grants often cover 30-50% of upgrade costs, making the switch even more attractive.
Maintenance Reduction and Lifespan
This is where LED technology really shines. LED fixtures are rated for over 100,000 hours of operation compared to just 15,000-24,000 hours for HID lamps. That translates to decades of reliable service versus frequent replacements.
HID systems require constant attention. Metal halide lamps fail regularly, and ballasts need replacement every few years. We've seen maintenance costs reach $2,000 per fixture over three years for older systems.
With LED high mast lighting, you're looking at minimal maintenance requirements over the system's lifetime. No ballasts to fail, no frequent lamp changes, and no disruption to your operations. This is particularly valuable for high mast installations where maintenance requires traffic control and specialised equipment.
Lighting Performance and Quality
The performance difference between LED and HID technology is remarkable. LED systems provide more uniform light distribution across large areas, eliminating the dark spots and shadows common with single-point HID sources.
Colour rendering is dramatically better with LEDs. While high-pressure sodium lamps produce that familiar orange glow with poor visibility, LEDs deliver crisp white light with higher CRI values. This means better safety, improved security camera performance, and improved visibility for workers and drivers.
LED fixtures reach full brightness instantly—no warm-up time required. HID lamps can take several minutes to reach full output, which creates safety concerns during power outages or system cycling.
Advanced LED high mast lighting systems also offer dimming capabilities and smart controls. You can reduce light levels during off-peak hours for additional energy savings, something impossible with traditional HID technology.
The optical control available with modern LED systems is superior too. You can direct light exactly where it's needed, reducing light pollution and maximising efficiency across your site.
Key Design Considerations for Your High Mast Lighting Project
Getting your high mast lighting design right from the start saves time, money, and headaches down the track. Let's walk through the essential factors that make the difference between a good system and a great one.
Determining Pole Height and Spacing
The height of your poles isn't just about reaching higher—it's about creating the most efficient lighting pattern for your specific needs.
For car parks and smaller commercial areas, poles between 12-20 metres work beautifully. They provide excellent coverage without being overwhelming, and maintenance remains straightforward.
Highway and major transport infrastructure typically requires 20-40 metre poles. This height gives you the wide area illumination needed for safe vehicle movement while reducing the number of poles required.
Ports, airports, and massive industrial complexes often need 30-50 metre poles to achieve maximum coverage across enormous areas. These giants can illuminate spaces that would otherwise require dozens of conventional lights.
Here's where high mast lighting really shines: fewer poles means less visual clutter, lower installation costs, and easier site navigation. Modern LED systems can space poles 700-920 feet apart, compared to conventional lighting that needs much closer spacing.
Calculating Lumen Output and Efficacy
Think of lumens as the "brightness budget" for your project. The key is getting the right amount of light where you need it most.
Lumen requirements depend entirely on your area size and how it's used. A quiet car park needs different lighting than a busy loading dock. Professional photometric analysis ensures you meet AS/NZS 1158 standards without over-lighting (and over-spending).
Modern LED technology delivers up to 191 lumens per watt—that's incredibly efficient compared to older systems. This efficiency means a single LED fixture can replace a 4000W HID system while maintaining or improving light levels.
The replacement ratios are impressive: 6 LED fixtures can replace 12 HPS fixtures in many applications. You're not just saving energy; you're simplifying your entire lighting infrastructure.
Understanding Photometric Distributions
This is where the magic happens—controlling exactly where your light goes.
Optical control is like having a dimmer switch for different areas of your site. Type I distributions create narrow beams perfect for walkways, while Type V distributions spread light in circular patterns ideal for open areas.
Asymmetric optics work brilliantly for roadways, creating long, narrow patterns that follow traffic flow. Symmetric optics suit open areas like car parks, providing even coverage in all directions.
The goal is always to minimise light spill while maximising efficiency. Proper optical control means your light goes where it's needed, not into neighbouring properties or the night sky. This guide to highway illumination standards provides excellent technical detail for transport applications.
Environmental and Regulatory Factors
Every site has unique challenges that smart design can overcome.
Wind load analysis isn't optional—it's critical for pole stability and safety. Your poles need to withstand local wind conditions while meeting Australian structural standards. Getting this wrong can be catastrophic.
Soil conditions vary dramatically across Australia. What works in Perth's sandy soils might fail in Sydney's clay. Proper geotechnical assessment prevents costly foundation failures years down the track.
Coastal applications need special attention. Salt spray is brutal on standard materials, but marine-grade coatings and improved corrosion protection keep your investment safe.
Aviation considerations become important with taller poles. Structures over certain heights may require aviation authority approval, and obstruction lighting might be mandatory. The FAA obstruction evaluation requirements provide guidance, though local Australian authorities have the final say.
Light trespass control keeps your neighbours happy and your project compliant. Specialised shields and optics ensure your light stays on your property, meeting local council requirements without compromise.
Smart design considers all these factors from day one. It's much easier to get it right initially than to fix problems later when your system is already installed.
Common Applications and Core Benefits
High mast lighting has become the go-to solution for illuminating Australia's largest and most demanding spaces. From busy highways to remote mining operations, these towering systems deliver the reliable, efficient lighting that keeps our infrastructure running safely around the clock.
Where is High Mast Lighting Used?
Where is high mast lighting used?
High mast lighting is versatile. It provides effective illumination across many sectors.
Transport & Infrastructure:
- Highways and major interchanges: Essential for safe driving conditions.
- Airports and aircraft parking areas: Provides exceptional visibility for operations.
- Ports and container terminals: Crucial for 24/7 uniform illumination, enhancing safety and productivity.
- Rail yards and freight facilities: Benefits from wide area coverage for improved operations.
- Toll plazas and service areas: Creates welcoming, secure environments for travelers.
Industrial & Commercial:
- Manufacturing facilities: Needs reliable lighting for shift work and security.
- Storage and distribution centers: Requires uniform illumination across vast areas.
- Mining operations: Depends on robust lighting for harsh environments.
- Chemical plants and refineries: Chosen for safety and reduced maintenance.
- Large retail car parks: Creates better customer experiences.
- Truck stops and logistics hubs: Operates more efficiently with superior visibility.
Public & Recreational:
- Sports stadiums and fields: Delivers the light quality needed for players and spectators.
- Large public squares: Becomes safer, more inviting gathering places.
- Correctional facilities: Requires security and reliability.
- Military installations: Chosen for durability and strategic lighting.
- Emergency services facilities: Needs lighting for critical situations.
What are the Main Advantages?
The benefits of high mast lighting extend far beyond simple illumination. Safety and security improvements are immediately noticeable - better visibility reduces accidents significantly, while improved security comes from eliminating dark spots and shadows. The superior colour rendering of modern LED systems helps with identification and creates a more natural visual environment.
Operational benefits make high mast lighting a smart business decision. You'll notice superior illumination uniformity compared to traditional lighting, with fewer physical obstructions cluttering your site. The reduced maintenance requirements mean less disruption to operations, while lower long-term operational costs improve your bottom line year after year.
Design advantages often surprise facility managers. Improved site aesthetics come from reducing visual clutter - fewer poles means cleaner sightlines and better curb appeal. The versatility for co-locating equipment like security cameras, communication antennas, or environmental sensors adds value beyond lighting. Easier site navigation results from fewer obstacles and better visibility.
Economic benefits deliver the compelling return on investment that drives adoption. Lower installation costs per area covered mean your budget goes further. Reduced ongoing maintenance expenses free up resources for other priorities. Energy savings of 50-80% compared to older HID systems provide immediate cost relief. The longer system lifespan - often 15-20 years - means you're making a long-term investment in your facility's future.
Frequently Asked Questions about High Mast Lighting
How many lights are on a high mast pole?
The number of fixtures on a high mast lighting pole isn't a one-size-fits-all answer. Most systems feature 4-16 luminaires per pole, but the exact number depends on what you're trying to achieve.
Area size plays the biggest role in determining fixture count. A large container yard will need more fixtures than a highway interchange. Required brightness levels also matter - if you need higher illumination for safety or security reasons, you'll need more lights.
Here's where modern technology really shines. Modern LED fixtures are so efficient that we often need fewer lights than older systems. For example, 6 LED fixtures can easily replace 12 high-pressure sodium fixtures while providing better light distribution across your space.
The fixture output of today's LEDs is remarkable. A single LED fixture can produce up to 139,000 lumens with exceptional uniformity, meaning fewer fixtures can cover the same area more effectively than older technology.
How is maintenance performed on such tall poles?
This is probably the most common concern we hear, and it's completely understandable. Nobody wants to think about maintaining lights 30 metres up in the air.
The good news is that most modern high mast lighting systems, including ours at Vizona, use integrated winch mechanisms that lower the entire luminaire assembly to ground level. Think of it like a controlled elevator system for your lights.
Here's how it works: There's a winch system at the base of the pole that allows technicians to safely lower all the fixtures to a comfortable working height. No bucket trucks, cranes, or dangerous climbing required. This means maintenance can be performed safely, quickly, and without the massive disruption of closing lanes or bringing in specialised equipment.
The LED advantage makes this even better. With LED systems lasting 100,000+ hours, you're looking at minimal maintenance requirements over the system's lifetime. No more frequent ballast replacements or lamp changes that plagued older HID systems.
Traffic disruption is minimal, labour costs are reduced, and most importantly, safety risks are dramatically lower. It's a win-win situation that makes the ongoing operation of your lighting system much more manageable.
Can high mast lighting be solar-powered?
This is a great question that comes up often, especially as more organisations prioritise sustainability. For large-scale, high-output applications, full solar power faces some practical challenges.
High mast lighting systems typically require substantial energy to illuminate large areas effectively. The high energy demand would require massive solar arrays and battery systems, making grid-connected LED systems more practical and cost-effective for most applications.
However, we do offer excellent mobile solar solutions for temporary or remote needs. Our Commander 4-Panel Solar Tower and Commander 3-Panel Solar Tower are perfect for construction sites, emergency response, or temporary lighting requirements.
Hybrid options are worth considering too. Solar-assisted systems can reduce grid consumption, while battery backup provides security for critical applications. Smart controls can optimise energy use throughout the night, dimming lights when full illumination isn't needed.
What about wind resistance and structural integrity?
Structural integrity is absolutely critical for high mast systems, and it's something we take very seriously at Vizona. Every pole is engineered to Australian Standards (AS/NZS), with specific wind load calculations for your local conditions.
Our heavy-duty steel construction with hot-dip galvanised coating ensures your system can withstand extreme weather conditions, including cyclones and high winds. The foundation design is custom to your specific soil conditions, ensuring long-term stability.
Professional installation and commissioning ensures everything is built to specification, with structural integrity testing and certification providing peace of mind. We don't cut corners when it comes to safety and compliance.
How do I ensure compliance with Australian Standards?
Compliance can seem overwhelming, but it doesn't have to be. The key standards you need to consider are AS/NZS 1158 for road lighting and AS/NZS 1170 for structural design, plus any specific local council requirements.
At Vizona, we provide comprehensive compliance support throughout your project. This includes professional lighting simulations to ensure your system meets all requirements, AS-compliant design documentation, and technical support from initial planning through to commissioning.
Our warranty and ongoing support gives you confidence that your system will continue to meet standards throughout its operational life. We've been doing this since 1999, and we understand exactly what's required to deliver compliant, high-performing lighting solutions across Australia.
Conclusion: Illuminating Your Project with the Right Solution
High mast lighting has revolutionised how we illuminate large commercial and industrial spaces. The change from energy-hungry HID systems to modern LED technology isn't just about upgrading lights—it's about completely reimagining what's possible.
The Clear Financial Case
The numbers speak for themselves. Modern LED systems deliver 50-80% energy reduction compared to traditional HID lighting, with some installations saving over $8,000 per fixture annually in electricity costs alone. When you factor in the 100,000+ hour lifespan of LED systems versus the constant lamp replacements needed with HID, the financial benefits become even more compelling.
But it's not just about the immediate savings. These systems are designed for long-term value, with predictable performance curves and minimal maintenance requirements. You're not just buying lights—you're investing in decades of reliable, efficient illumination.
Beyond the Numbers
The real change happens in how these systems perform. Superior light quality and distribution means fewer dark spots, better colour rendering, and improved safety across your facility. The uniform illumination created by properly designed high mast systems eliminates the patchy lighting that's common with conventional approaches.
For facility managers, the dramatically reduced maintenance requirements mean fewer disruptions, lower labour costs, and less time spent coordinating bucket trucks or cranes. The integrated lowering mechanisms we include in our systems mean maintenance happens safely at ground level.
The Vizona Difference
As an Australian-owned company with deep local knowledge, we understand the unique challenges of our climate and conditions. Our team doesn't just supply equipment—we provide complete solutions from design to installation, backed by comprehensive technical support and warranty coverage.
Whether you're upgrading an existing facility or planning new construction, we combine lighting expertise with structural engineering to deliver systems that perform reliably for decades. Our proven track record on major infrastructure projects like the 365 poles we supplied for Snowy Hydro 2.0 demonstrates our capability to handle projects of any scale.
Making It Happen
From our facilities in Sydney and Perth, we serve clients across Australia with supply-only solutions nationwide and full supply-and-install services in Western Australia. Our commitment to using recyclable materials like aluminium and innovative LED technology ensures your project delivers both performance and sustainability.
The transition to modern high mast lighting isn't just about meeting today's needs—it's about future-proofing your facility with technology that will continue delivering value for years to come. With compliance with Australian Standards built into every design and environmental benefits through reduced energy use, you're making a choice that benefits both your bottom line and the broader community.
