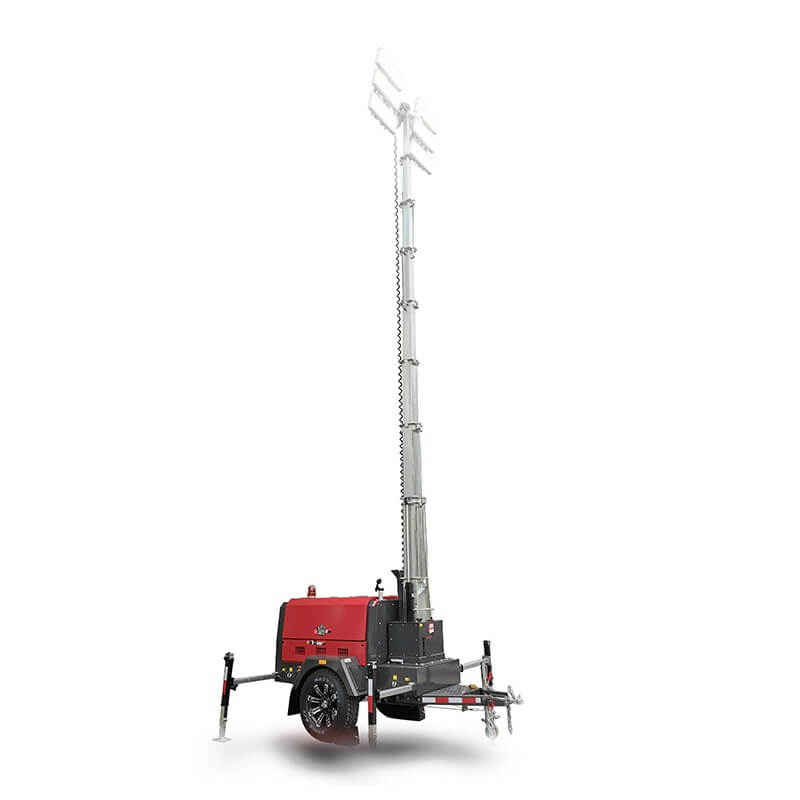

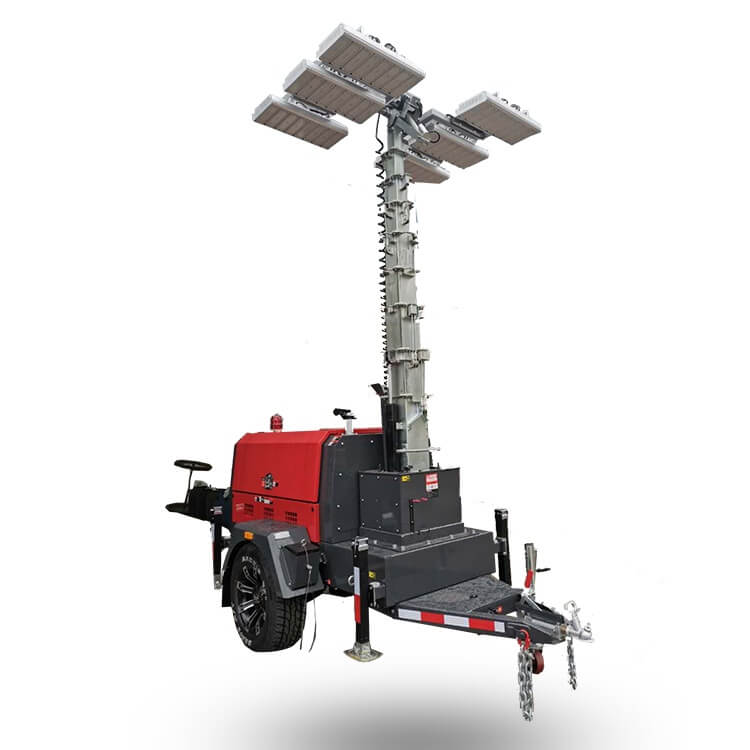

Bravo Swift Diesel Powered Lighting Tower
| TECHNICAL DATA | |
|---|---|
| Engine | |

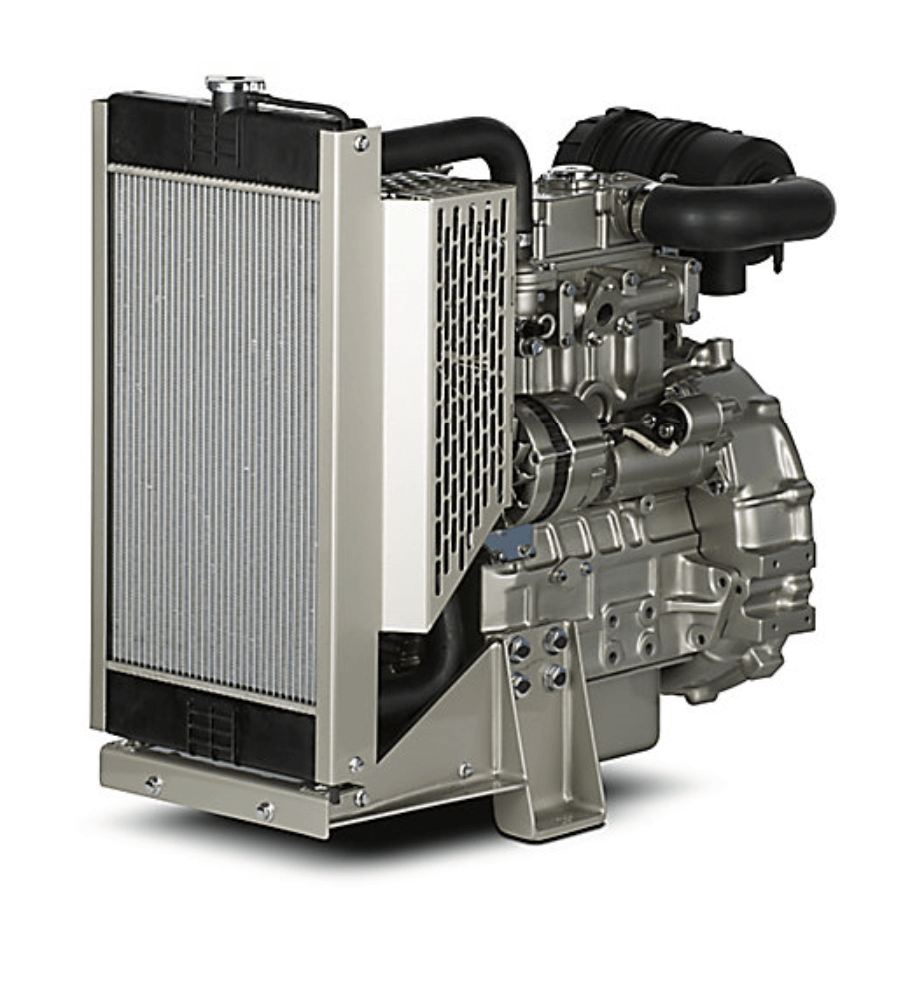

| Make/Model | Perkins 403A-11G |
| Engine | Three cylinders in line, Four stroke |
| Cooling | Water |
| Output | 7kW/7kVA |
| Revolution | 1500/1800 RPM |
| Fuel Capacity | 100L |
| Number of Cylinders (Displacement) | 3 |
| Engine Shutdown Protection | Low oil pressure, Hight water tempreture |
| Alternator | |
| Model/Make | Stamford |
| Type | PI 044D, IP23 |
| Alternator type | Single Phases |
| Alternator speed | 1500/1800 |
| Voltage output | 48V DC |
| Insulation | H class |
| Type of bearing/Brush | Single/Brushless Self excitation |
| Light | |
| Lighting | LED |
| Lamp No. | 6 × 300W |
| Lamp type | LED lamp |
| Illuminating Field | 5000-8000 Square metres |
| Housing Materials | Aluminum |
| Mast Tower | |
| Type | Multi-Sections Telescoping mast |
| Total Height | 9 M |
| Rotation | 360 degrees |
| Mast Sections | 9 |
| Operate for Extends | Hydraulic operation |
| Wind Speed Resistance | 117km/h |
| Features | |
| Sub-Frame | Heavy steel sections |
| Axle | Single |
| Wheel and Rim | Alloy (other options) |
| Trailer Suspension System | Steel plate spring |
| Towing Type | Ring or ball hitch |
| Cabin | Two doors one each side |
| Tail Lights | LED – Rear Lights, Stop & Indicate |
| Weight | 1400KG |
| Transport Dimension | 3300mm×1600mm×2700mm |
| Operating Dimension | 3300mm×2600mm×9000mm |
