Description

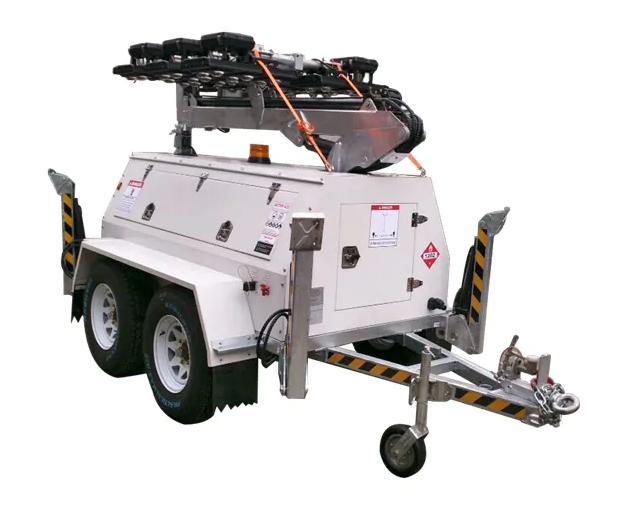

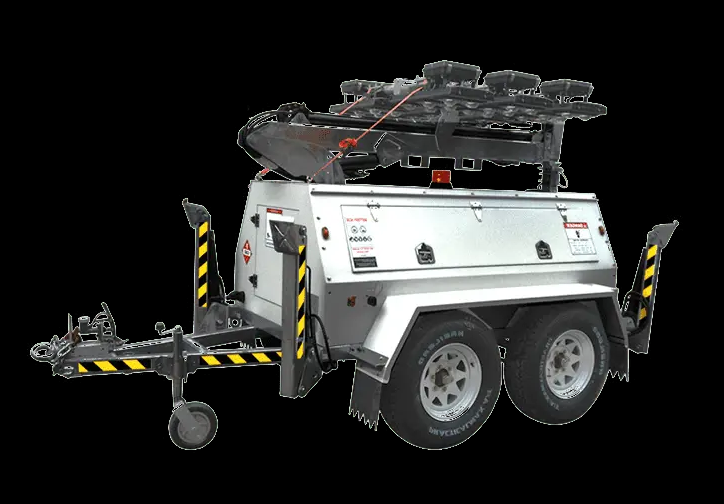

Bravo 360 Diesel Powder Lighting Tower
| Details | |
|---|---|
| Engine | |
| Make/Model | Perkins 403D-11G (Other options – Yanmar, Kohler, Kubota) |
| Engine type | Three cylinder, Four stroke |
| Cooling | Water |
| Output (Continous) | 9kW/1500Rpm |
| Fuel Capacity | 300L (other sizes available) |
| Output | 16.4KW |
| Revolution (RPM) | 3000Rpm |
| Engine Shutdown Protection | Low oil pressure, High water tempreture |
| Alternator | |
| Model/Make | SMU-132 |
| Type | Single phase |
| Frequency | 50Hz |
| Voltage Output | 48V DC |
| Insulation | H class |
| Light | |
| Type of Lamp | LED Lamps |
| Number of Lamps | 8 x 500W (other options available) |
| Luminous Efficacy | 8000 – 12000 Sqm |
| Total Lumins | 500,000Lm |
| IP Code | IP66 |
| Lamp Construction | Aluminium |
| Mast | |
| Type | Multi-Section with hydraulic & telescopic operation |
| Total Height | 10M |

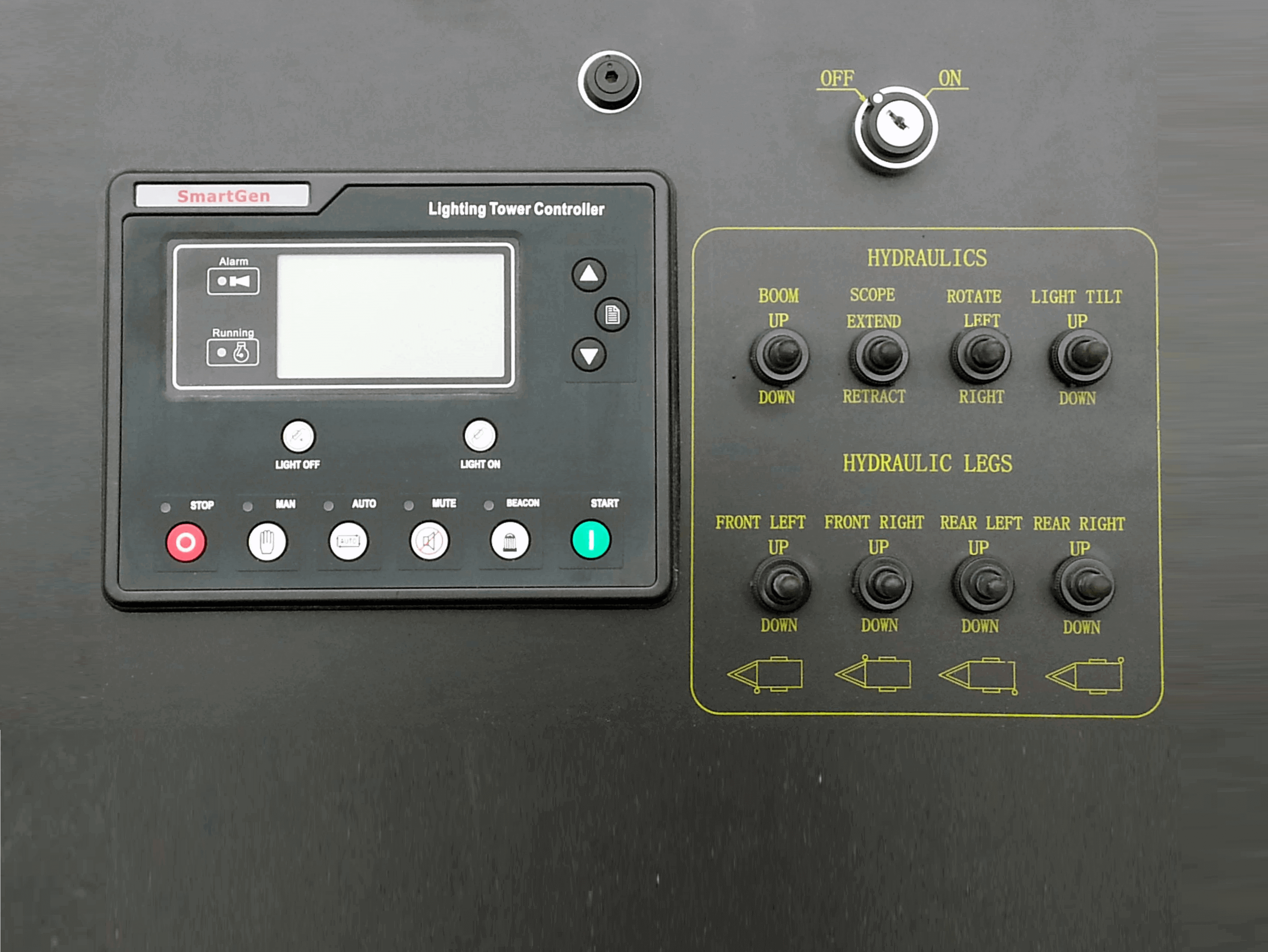

| Mast Operartion | via SmartGen control panel |
| Light Rotation | 360 Degrees |
| Wind Speed Resistance | 100Km |
| Trailer Features | |
| Sub-Frame | Heavy steel channels |
| Axle | Dual axle |
| Trailer Supports | 4 hydraulic outriggers |
| Trailer Cabinet | Two doors – one each side. Waterproof |
| Tail Lights | LED – Tail lights, stop & indicate. |
| Wheel and Rim | 235R/16″ |
| Trailer Suspension | Leaf spring |
| Towing | Ring or ball hitch |
| Additional Specifications | |
| Power Shutdown | MCCB, MCB & Emergency Stop Button |
| Weight | 1850Kg |
| Shipping Dimensions | 2250 x 1850 x 2380mm |
| Bulk Cartage | Fork pockets and central lifting point |
